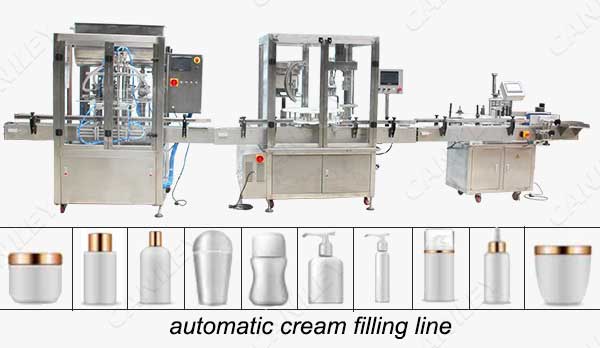

Automatic Body Butter Cream Filling Machine

suitable for bottles of different shapes, stainless steel design, in line with GMP requirements

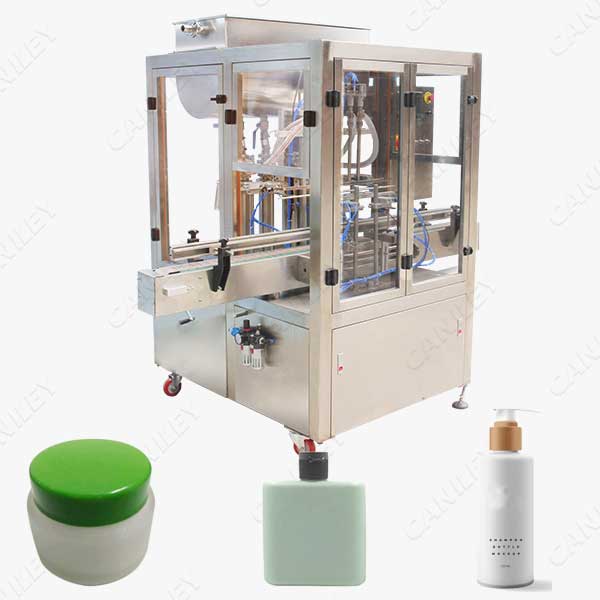

The automatic cream filling machine uses compressed air as power and an automatic filling system is composed of precision pneumatic components. Simple structure, sensitive and reliable action, convenient adjustment. The body butter filling machine is suitable for filling various liquids, viscous fluids and pastes. It is an ideal filling equipment in the pharmaceutical, chemical, food, cosmetic and other industries.

Automatic Cream Filling Machine Main Components:

Frame Filling head3. Filling cylinder   4.Conveyor belt  5.Bottle blocking device  6.Photoelectric probe  7. Motor  8. Reducer   9. Chain   10. Transmission mechanism  11. Nylon feeding pipe   12. Suction device

Body butter filling machine

Automatic Cream Filling Machine Features:

  • The piston ring of the plunger metering pump is made of tetrafluoroethylene.
  • PLC control system, frequency conversion speed regulation, high degree of automation.
  • No filling for lack of bottles, automatic counting function.
  • The body butter filling machine is convenient to adjust the filling volume. The filling volume of all metering pumps can be adjusted at one time, and it can also be adjusted slightly for each metering pump; the operation is simple and the adjustment is fast.

  • The filling volume can be adjusted to level control, just add back suction device.
  • The filling head is equipped with an anti-drip device.
  • The filling cylinder adopts a rotary valve piston pump, which effectively prevents wire drawing and dripping.
  • The body butter filling machine is suitable for bottles of different specifications, easy to adjust, and can be replaced in a short time.
  • The automatic cream filling machine is designed according to GMP requirements.
Model CK-GT4T-4G
Voltage 220V  50/60Hz
Air Pressure 0.5-0.7Mpa
SS Material SUS304
Pistion Material PTFE
Main Cylinder SMC(Japan)
PLC&Screen Delta
Filling Volume Range 100-1000ml
Filling Heads 4
Filling Speed 16-20 Bottles/Min
Machine Size (L*W* H)  2000*1050*1900 mm
Weight 350Kg
