Industrial Essential Oil Filling Capping Machine

accurate measurement, convenient operation, PLC control

The automatic essential oil filling machine is widely used for filling 5-50ml round and flat essential oil bottles, as well as dropper essential oil bottles. The essential oil bottling machine is suitable for daily makeup products such as liquid foundation, nail polish, perfume, eye cream, etc. The main components are bottle unscrambler, essential oil filling capping machine, and labeling machine. It is an ideal tool for essential oil bottling company.

Essential Oil Filling Machine Work Process:

Unscramble bottle– automatic bottle feeding to the station– automatic quantitative filling– automatic cap sorting, feeding cap and screw cap– finished product conveyor belt output

Essential Oil Filling Machine Features:

  • This machine adopts conveyor belt frequency conversion to transport bottles, stainless steel pump penetration positioning filling, automatic vibration cap sorting, pneumatic linear positioning lower cap screwing (pressing) cap, the conveyor belt automatically transports the filled and sealed product to The next process.
  • Theessential oil filling machine uses a peristaltic pump for filling, accurate measurement, convenient operation, and no dripping due to the suck back function.

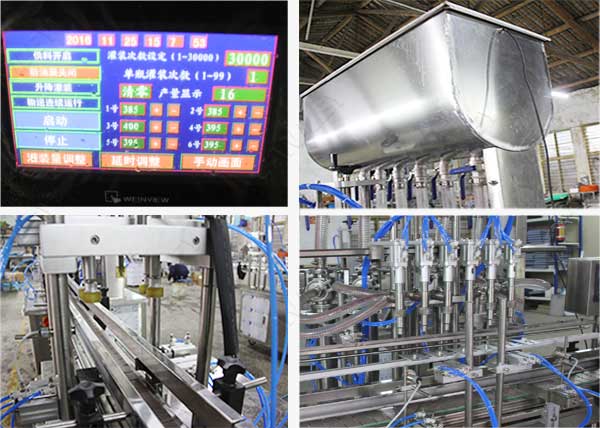

Oil filling machine factory

  • All electrical components adopt well-known brands. Itis easy to operate, no bottle, no filling, very accurate measurement.
  • Due to pneumatic control and mechanical positioning, the filling accuracy is high, and the error is controlled within 0.5 ‰.
  • Color touch screen interface operation, PLC control system.
  • This essential oil filling machinecan also heat, stir, and constant temperature for paste and liquid materials. It can fill the materials that need heating, stirring, and constant temperature within the specified range to achieve the predetermined effect.
Model CK-GT4T-4G
Voltage 220V  50/60Hz
Air Pressure 0.5-0.7Mpa
SS Material SUS304
Pistion Material PTFE
Main Cylinder SMC(Japan)
PLC&Screen Delta
Filling Volume Range 100-1000ml
Filling Heads 4
Filling Speed 16-20 Bottles/Min
Machine Size (L*W* H)  2000*1050*1900 mm
Weight 350Kg
