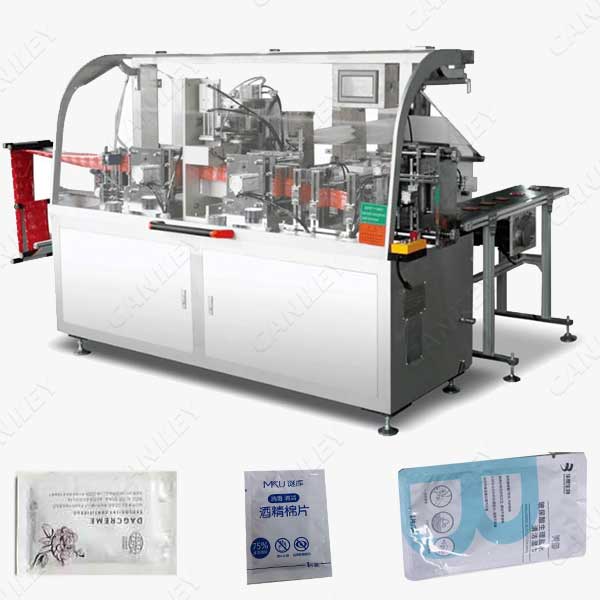

Single Sachet Wet Wipes Packing Machine for Sale

wide use range, high speed, high accuracy

Category:

The wet wipes packing machine is suitable for packing sterilizing alcohol pad, wet wipes, disinfectant wipes, makeup wipes, etc. Fast speed and wide range of use.

Wet Wipes Packing Machine Working Process:

From folding, severing, liquid injection inside the package, to sealing, cutting, notching (for easy opening of package).

Wet wipes packing process

Wet Wipes Packing Machine Composition:

  1. Forming and bottom sealing

fold the film and forming it into bag, the sensor make it more exactly ,no blank edge.

  1. Cutting and inserting parts

cut tissue, fold and insert it into the sachet, then add liquid

  1. Prints parts

two sets for print code, one set for print tear parts, you can change the steel letters to control the date and codes print on the sachet.

  1. Collecting part

the packing arm will collect the bag and stack it onto the conveyor, the number of the stacking can be setting on the touch screen.

Single Sachet Wet Wipes Machine Features:

  • Sealed twice to avoid liquid leak.
  • Wet wipes can be folded in different ways. It can be horizontally folded for 4 times at most.
  • Advanced measuring pump is available for accurate liquid volume control (the filling error is about 0.01ml/time)
  • The wet wipes packing machine body is made of stainless steel and is beautiful and durable. It  with low electricity and air consumption, simple cleaning and much lower operation.
Model CK-VPD250
Packaging size 50-110mm  Length
Packaging material Composite materials such as composite films, aluminized films, polyethylene / polypropylene
Wet wipes material 30~80g/m2  Clean paper, wet strength paper, non-woven fabric, spunlace non-woven fabric
Unfold the size of the wet wipes Width:30-240mml
Length:60-240mm(according to requirements)
Folding Method Fold up to 8 times in the longitudinal direction and 4 times in the horizontal direction
Packaging speed 60~120 bags/min
Dosing range 0-5ml Liquid accuracy±0.01ML
Power Single phase 220V  50/60Hz  4.8Kw
Gas consumption air compressor
0.5-0.8m3/min  300-500L/min
Machine weight 1100Kg
Machine size 2800mm×2800mm×1800mm
