Automatic Spaghetti Noodle Weighing Packing Machine

simple operation, saving manpower and improving packaging efficiency

Pillow-type packaging is a commonly used packaging form for spaghetti noodles, and the entire packaging process is completed through automatic weighing, feeding, bag making, and packaging. Help spaghetti manufacturers simplify the packaging process and improve packaging efficiency.



Spaghetti Packaging Machine Composition:

1 flow packing machine, 1 conveyor line, 3 spaghetti weighing machines, 3 feeding elevators, and 3 pneumatic online buckets.



Use of Spaghetti Noodle Packing Machine:

Automatically complete the weighing, feeding, filling, sealing and packaging of strip materials such as stick noodles, dry noodles or spaghetti. It can be used in connection with the spaghetti production line.

Spaghetti Packaging Machine Features:

  • Using well-known brand electrical components, English (switchable language) touch screen interface, PLC control, easy to operate.
  • The main engine has variable frequency speed regulation, and the adjustment range is large.
  • The spaghetti noodle packing machine adopts servo motor to control the conveying, cutting and adjustment of the packaging film; it has a complete anti-cutting device and is highly safe.
  • The conveyor line adopts an integrated structure and has a long service life; it adopts photoelectric coupling control to reduce the probability of leaking packets.
  • The weighing machine adopts English touch screen and PLC control, which replaces the traditional separation instrument weighing method. The weighing speed is fast, the measurement accuracy is high, the operation is intuitive and convenient, and it is a substitute for the traditional weighing machine.

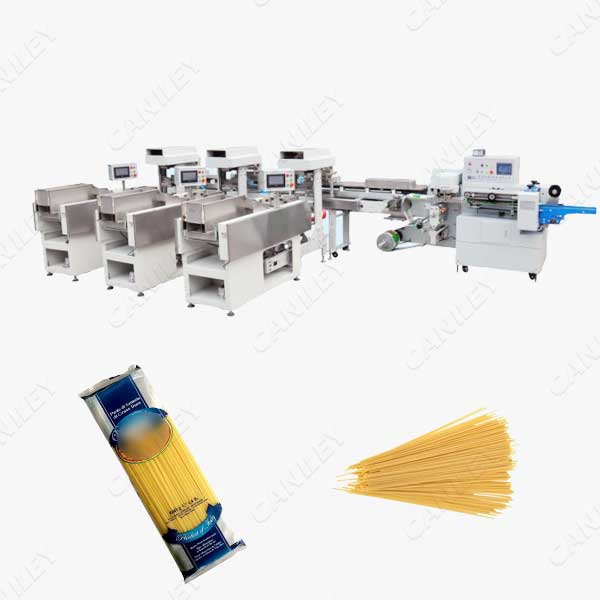

spaghetti noodle packing machine

Benefit Analysis of Spaghetti Weighing Packaging Machine:

  • Save manpower and improve packing efficiency: 4 people operate the equipment, and the daily packaging is about 30 tons, which is equivalent to the output of 40 people.
  • Save consumables, use film roll instead of premade bags, and save about $100 in film costs per day.
  • It reduces the chance of hand-packaged human body contacting spaghetti, more in line with the requirements of food safety standards, and facilitates product promotion.



Spaghetti Packaging Machine Technical Parameter:

Model CK- GBX-2
Working objec stick noodles, Spaghetti, dry noodles
Noodle length 100g~500g: (200mm~240mm)±5.0mm
  200g~1000g:(220mm~240mm)±5.0mm
Noodle thickness 0.6mm~1.4mm
Noodle width 0.8mm~3.0mm
Packing speed 20~40bags/min
Weighting scope 200-1000g
Values set up digital input
Values showed precisely To 0.1g
Zero adjustment Automatic or manual
Weighting speed and precision 100g~500g, ±2.0g≥96%
  200g~1000g, ±3.0g≥96%
Voltage single-phase AC220v/50-60HZ 6KW
Size 6400mm*3800mmm*1650mm



    LEAVE A REPLY

    Your email address will not be published. Required fields are marked *


    Reviews

    There are no reviews yet.

    Be the first to review “Automatic Spaghetti Noodle Weighing Packing Machine”

    Your email address will not be published. Required fields are marked *

    You may also like…

    • Rotary Stand Up Pouch Filling Machine for Dry Fruit

    • Horizontal Flow Instant Noodle Packing Machine Price

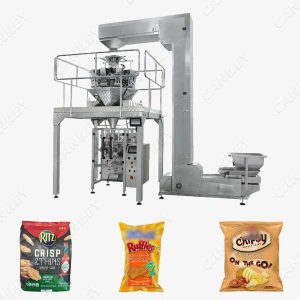

    • Multi-Function Crisp Packaging Machine Hot Selling
