Automatic Heat Shrink Wrap Machine for Bottles

suitable for bottled beverage, PID temperature control, touch screen operation

This shrink wrap machine for bottles is suitable for the production lines of juice, beer, mineral water and other beverage production enterprises. The heat shrink wrap machine can be automatically combined to make it meet the standard packaging quantity.

bottles shrink wrap machine samples

And according to the quantity of packaging and appearance size, the automatic shrink wrap machine can be adjusted and set in advance to meet the packaging requirements of various specifications.

Features Shrink Wrap Machine for Bottles:

  • High-performance Omron PLC plays a key role in the stable and reliable operation of heat shrink wrap machine;
  • Omron AC contactors are perfectly combined with high-power solid-state adjustments, equipped with smart meters to make the system temperature more accurate and extend the service life.

automatic shrink wrap machine

  • High-power continuously variable transmission system to ensure the transmission quality;
  • The upper and lower hot air circulation system ensures perfect packaging effect at one time;
  • PID temperature controller is installed, which is precise and energy-saving.

  • Touch screen control makes the automatic shrink wrap machine motion control into a high-precision intelligent state. All actions are monitored, various alarms, and the status of the PC are displayed on the touch screen, making the operation of the device safer and more reliable. It can act in one step to facilitate debugging and maintenance. The shrink wrap machine for bottles is equipped with an automatic alarm device to further improve the safety and reliability of the equipment.

Shrink Wrap Machine for Bottles Data:

Model CK-QSJ-5040A
Power 2kw
Conveyer speed 0-10/min
Packing speed 0~8pcs/min
Pushing board loading 20kg
Weight of film roller ≤30kg
Working pressure 0.4-0.6 Mpa
Power source AC220~380V/50~60Hz/3PH
Max. packing size 420(L)×300(W)×350(H)mm
Min. packing size 250(L)×50(W)×100(H)mm
Front conveyor 900(L)×410(W)×400(H)mm
Motor loading 50 kg


    Your email address will not be published. Required fields are marked *


    There are no reviews yet.

    Be the first to review “Automatic Heat Shrink Wrap Machine for Bottles”

    Your email address will not be published. Required fields are marked *

    You may also like…

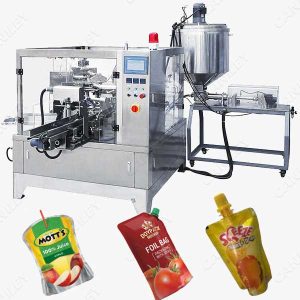

    • Automatic Liquid Detergent Pouch Filling And Sealing Machine
