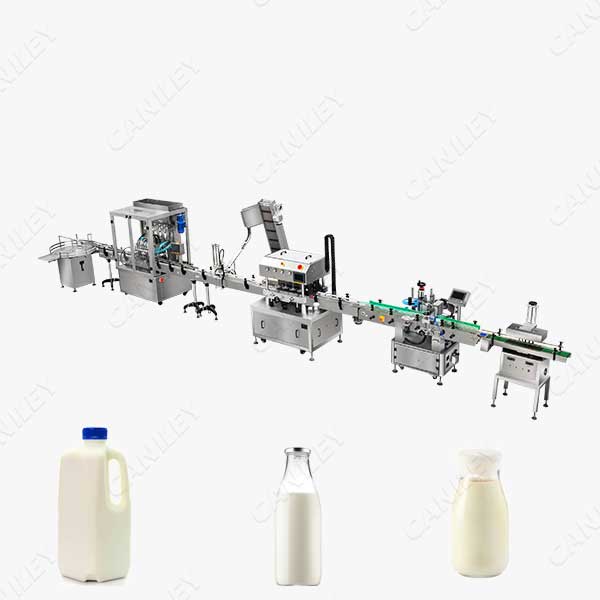

This milk filling machine is suitable for filling milk, juice and beverage, etc, can also conduct thermal filling.
How Does Milk Filling Machine Work?
- The bottle is conveyed to the bottle washing machine by the air channel through the bottle star wheel, and it is turned 180° along the guide rail to make the bottle mouth downward.Spray the disinfectant to disinfect the inner wall of the bottle. After disinfection, rinsing, and draining, turn over 180° so that the mouth of the bottle faces upwards.
- The washed bottles are transferred to the filling machine through the star wheel,the bottle rises and falls through the lifting mechanism under the action of the cam, after the bottle rises and the filling valve is opened, the filling process is completed.
- The bottle enters the capping machine, jams the neck of the bottle, keeps the bottle upright and prevents it from rotating.The capping head keeps revolving and rotating on the capping machine, then complete the entire capping process.
Milk Bottling Machine Features:
- The machine adopts the design of the bottleneck suspension operation mode, so that the bottle is stable and reliable under high-speed operation. At the same time, the number of changing parts is greatly reduced, making it more convenient and faster to change the bottle shape.
- A new generation of stainless steel flip bottle clamps are used to make the clamps do not touch the part above the thread of the bottle mouth, and a spray head is provided to flush the inner wall of the bottle sufficiently without dead ends.
- The milk bottling equipment adopts the filling valve up and down, which can meet the technical requirements of hot filling below 95 degrees. The filling action is smooth, fast, high-precision, reliable sealing, low material loss and other functions to effectively avoid secondary pollution of the bottle mouth.
- The magnetic torque type cap screwing head is adopted to realize the cap removal and cap screwing. The capping torque is steplessly adjustable, and the sealing is tight and reliable without damaging the cap.
- The parts in contact with the milk are made of high-quality stainless steel, and the main electrical components are made of internationally renowned manufacturers.
Technical Parameters:
Model | CK-GZ18/24/32TS |
Filling Bottle | PET bottle,glass bottle |
Measuring range | 350-2680ML |
Bottle Size | ∅60-∅112mm,height180-330mm |
Packing Speed | 5000-18000bottle/h |
Filling valve number | 18-32 |
Voltage | 380VAC/50HZ |
Power | 2.5-7.5KW |
Dimensions | 3400L×3000W×2700H |
Weight | 4000KG-9000KG |
Precision | ≤±1% |
